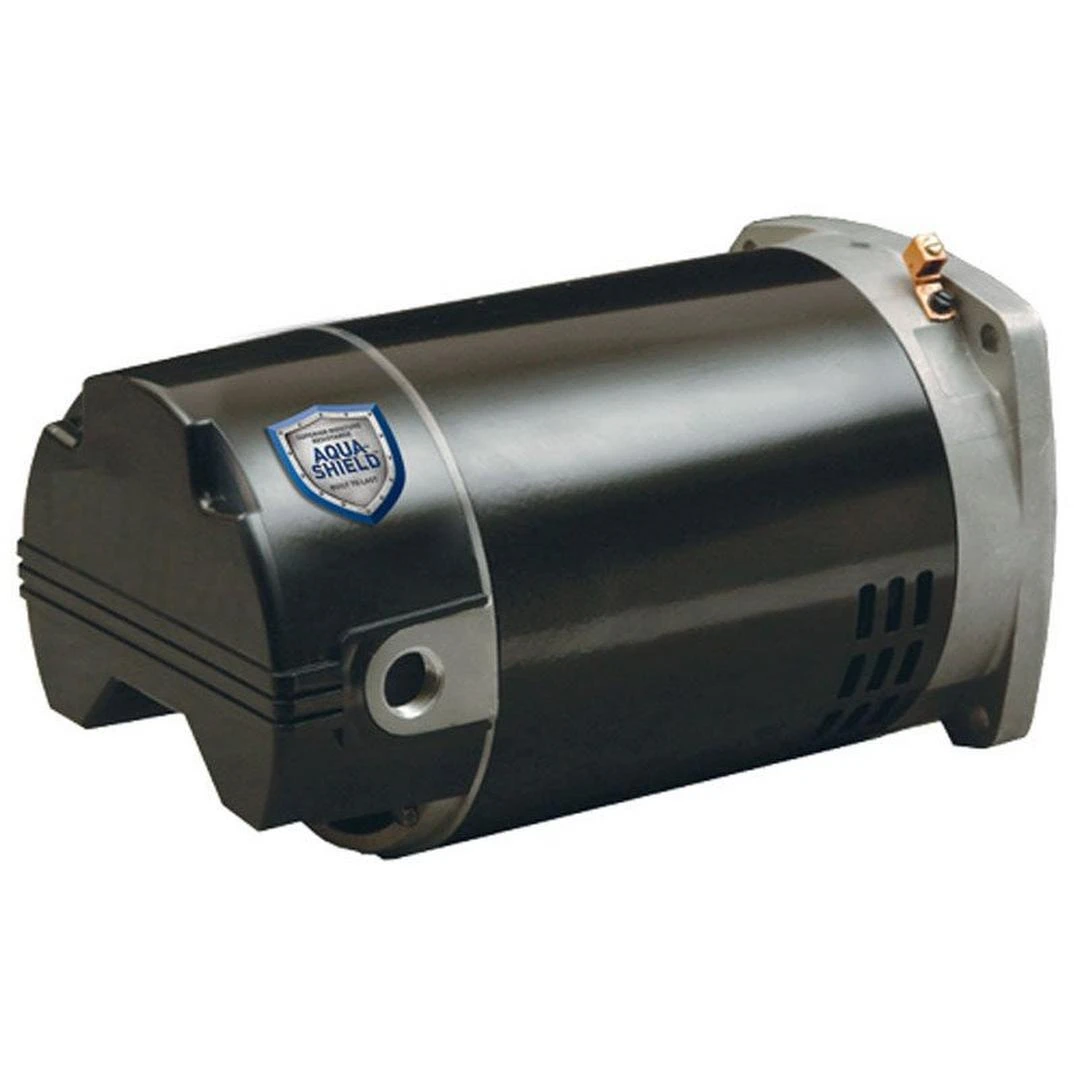

U.S. Motors - Emerson ASB848 Square Flange Single Speed 1HP Full Rated 56Y Pump Motor

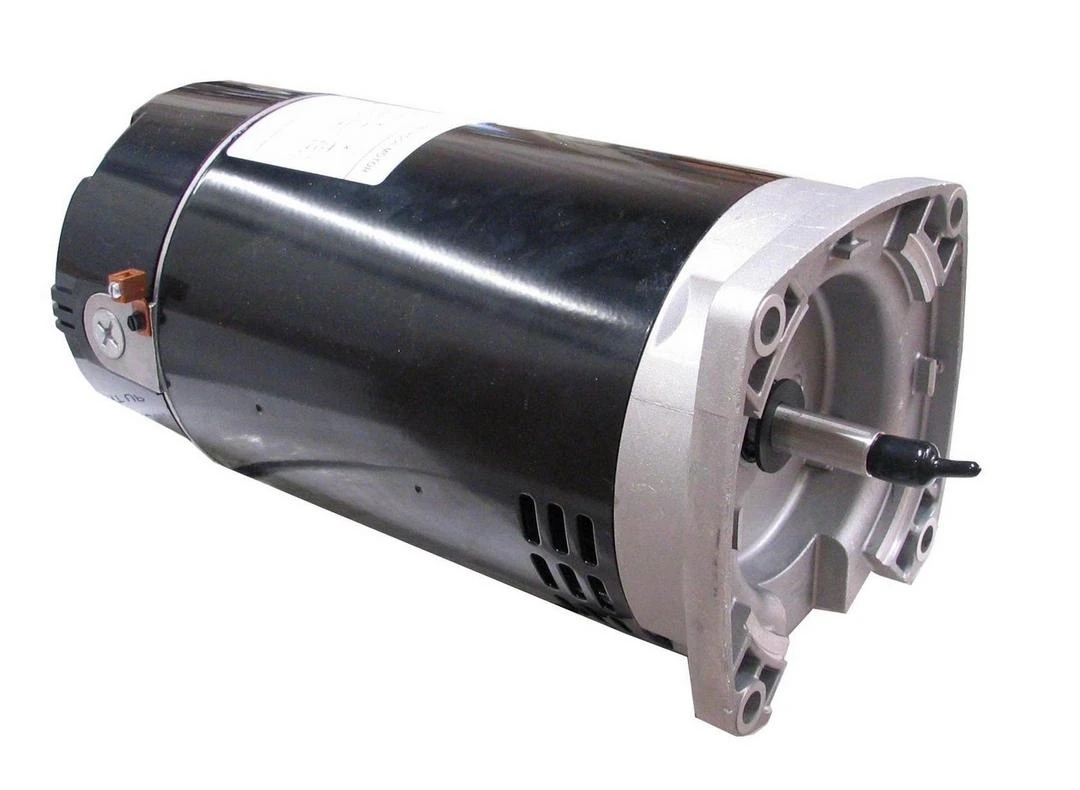

U.S. Motors - Emerson ASB848 Square Flange Single Speed 1HP Full Rated 56Y Pump Motor - Image 2

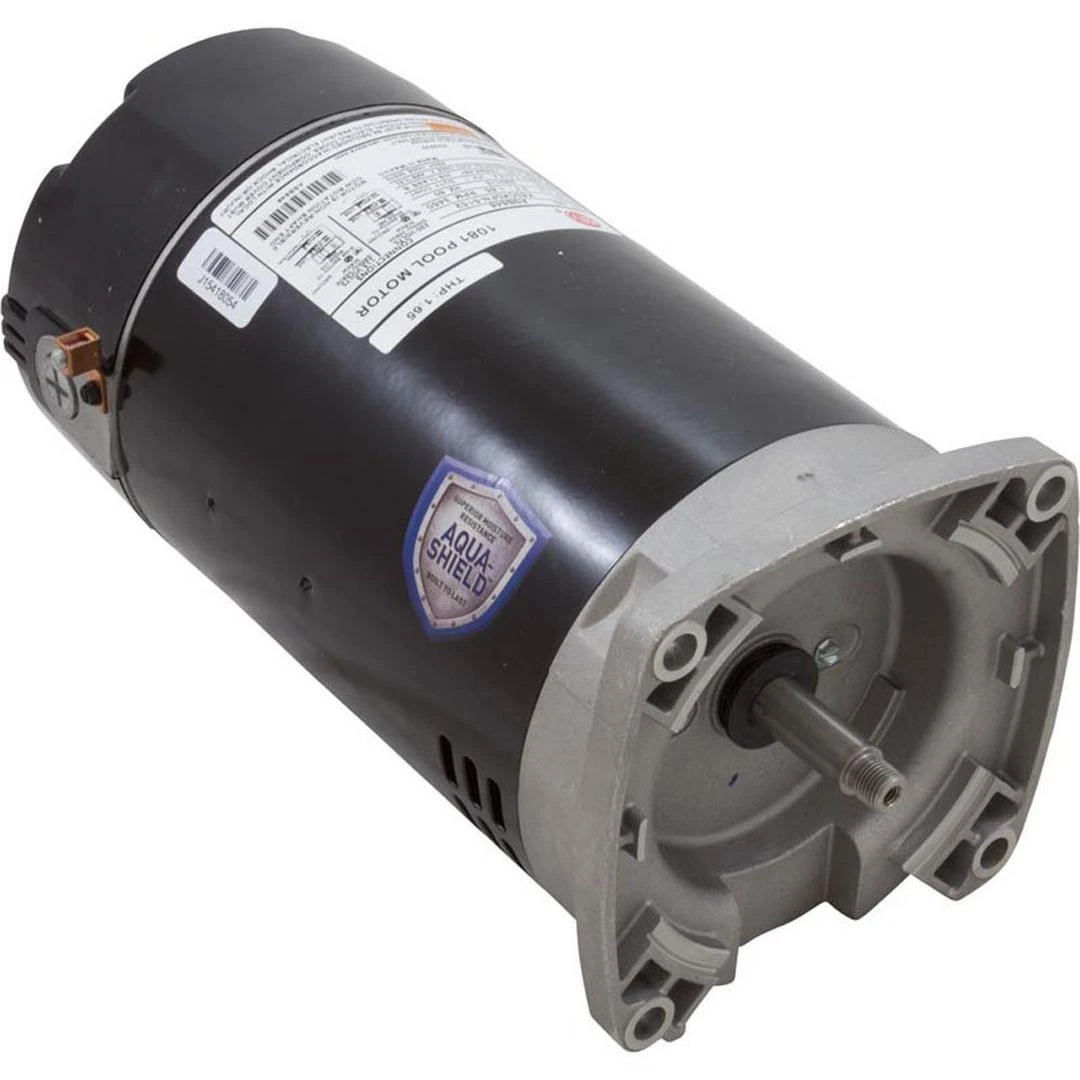

U.S. Motors - Emerson ASB848 Square Flange Single Speed 1HP Full Rated 56Y Pump Motor - Image 3

Original price was: $279.99.Current price is: $95.99.

SKU: BGVZB 623411 Category: Spa Parts & Equipment

Worry-Free Shopping with Safe Payments
Nature-friendly materials, for a better planet.
Protect Your Information, Shop with Safe Payments
7-Day Returns, 100% Quality

Description
Reviews (0)

U.S. Motor Emerson ASB848 Square Flange Single Speed 1HP Full Rated 56Y Pump Motor is a powerfully designed motor for your pool or spa.

Two compartments
Shaft Threads: 1/2-20 UNF-2A
50 degrees Celsius ambient
1081 Design
Continuous Duty
Switchless design
Voltage selection device (dual voltage only)
Service Factor: 1.65
RPM: 3450
Length without Shaft: 11.74
7.7/15.4A 115V/230V

The Emerson 56 Y-Frame Square Flange motor is a powerfully designed motor for your pool or spa. Its Triple Bearing Protection prevents premature wear and tear and its sealed ball bearings provide additional support giving you long lasting performance. The Emerson 56 Y-Frame Square Flange motor has an open drip proof enclosure that keeps water from flowing into the motor and its rear mounted fan keeps it cool during operation. Its large 6.5 frame boasts a stainless steel shaft for extremely durable housing and its thermally protected, Class B insulated design keeps the motor cool to prevent overheating. The Emerson 56 Y-Frame Square Flange is a single speed pool and spa motor and its 1 HP rating delivers optimum performance.

Voltage:	120V / 240V
Voltage:	115V / 230V
Service Factor:	1.50 – 1.75
Pool Type:	In Ground
Speed Settings:	Single Speed
Motor Frame:	56Y Frame
Horsepower:	1 HP
Flange Type:	Square Flange
Rating Type:	Full-Rated
Energy Efficiency:	Standard
Product Type:	Pool Motor
Manufacturer:	U.S. Motors Emerson
Product Type:	Pool Pump
